Chasswheel Four X DL Wheelchair review
April 12, 2016
Our review of the Chasswheel Four X DL wheelchair - the best wheelchair for an active and versatile lifestyle?
This wheelchair is a high end piece of equipment that could possibly give you an active lifestyle again - we have seen users play a round of golf, go fishing, going hunting and just generally accessing places that they previously thought they never could.
The Stand Up model is one of three available - the full range includes;
- Standard Tilt only model
- Tilt and Lift model
- Tilt and Stand assist model
They all have four motors which power each wheel seperately - while each wheel can steer independently. The split diff axles allow for navigation of higher or rough ground and even larger stones or steps as you can see below;
Steps can be tackled too;
This leading bit of kit is not cheap but considering how it can be used in the real world - it offers real value.
The benefits of the stand assist function as given by Chasswheel are what you would expect too;
- Enhanced blood circulation
- Easier Breathing
- Reduction of spasticity and contractures
- Improves bowel and bladder function
- Bone density
- Lowers risk of pressure ulcers
- Safe movability
With all the build quality you would expect from Chasswheel and the expert help and advice available at John Preston Healthcare this is well worth seeing in the ' flesh '.
Assessments can be arranged in Ireland by calling us on 028 92 67 70 77 - we have been a family business in Ireland since 1846 so know how to look after your needs.
Four X Standard Features
-
- Batteries, (73A x 2) and battery charger included
- Dynamic DX2-550 Driving Control
- AMT motors (4 x 250W)
- Wheels: 6” or 8”
- Seat: CW or Recaro mechanical
- Manual footrest + foot plate
- Any colour plastic parts
- Safety Belt, hip model
- Armrest + cushion
- LED Lights and indicators complete
- Mud guards complete
- Gravity point adjustment
- TILT
- 4 wheel drive
- Speed 10 km/h
- Driving distance: ~40 Km
Four X Seat Raiser Model Features
-
- Batteries, (73A x 2) and battery charger include
- Dynamic DX2‐REM420/550 Driving Control
- AMT motors (4 x 250W)
- Wheels: 6”
- Seat: CW or Recaro mechanical
- Manual footrest + foot plate
- Any colour plastic parts
- Safety Belt, hip model
- Armrest + cushion
- LED Lights and indicators complete
- Mud guards complete
- Gravity point adjustment
- TILT
- 4 wheel drive
- Speed 10 km/h
- Driving distance: ~40 Km

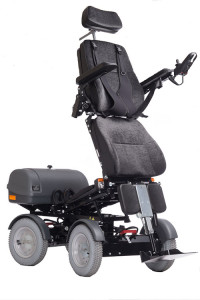

Stand Support Model Additional Features
-
- Batteries, (73A x 2) and battery charger include
- R-Net Driving Control
- AMT motors (4 x 250W)
- Wheels: 6” or 8”
- El. CW seat, pillows are removable
- El. Footrest + foot plate
- Any colour plastic parts
- Safety Belt and 4 – point’s seat belt for body
- Knee support
- Armrest + cushion
- LED Lights and indicators complete
- Mud guards complete
- Gravity point adjustment
- TILT
- 4 wheel drive
- Speed 10 km/h
- Driving distance: ~40 Km
Technical Specifications
| Width | 695 mm |
| Height | 700-850 mm |
| Length | 1250 mm (footrest down) |
| Weight with battery | Four X (Four X DL) 140kg |
| Four X Lift (Four X DL Lift) and Four X Stand Support (Four X DL SSS) 170kg | |
| Maximum speed | 6/10 km/h |
| Drive distance | 35 km |
| Batteries | 80 Ah, gel |
| User max weight | 125 kg |
| Seating width | 400-480 mm |
| Seating depth | 390-510 mm |
| Backrest height | 500-600 mm |
| Ground clearance | 6" tire 100mm, 8" tire 120mm |
| Slope climbing capacity | 20° |
| Maximum obstacle climbing ability | 150 mm |
| Seating height without pillows | 6" tires |
| Four X (Four X DL) 440 mm | |
| Four X Lift (Four X DL Lift) 530 mm | |
| Four X Stand Support (Four X DL SSS) 530 mm | |
| 8" tires: | |
| Four X (Four X DL) 465 mm | |
| Four X Lift (Four X DL Lift) 555 mm | |
| Four X Stand Support (Four X DL SSS) 555 mm | |
| Tilt angle | 30° |
| Footrest angle | 80° |
| Backrest angle | 84°-125° |
| Electronics | Four X Four X (Four X DL) and Four X Lift (Four X DL Lift): Dynamic DX2 |
| Four X Stand Support (Four X DL SSS): R-Net |
